LevelOne最新40G QSFP+ Transceiver 系列 —
MultiMode 40G
SR4 MPO-12 QSFP+ Transceiver (150m,
850nm) – QFP-3001
MultiMode 40G
CSR4 MPO-12 QSFP+ Transceiver (400m,
850nm) – QFP-3003
SingleMode 40G
LR4 Duplex LC QSFP+ CWDM4 Transceiver (10km,
1310nm) – QFP-3110
SingleMode 40G
PLR4 MPO-12 QSFP+ PSM4 Transceiver (10km,
1310nm) – QFP-3111
SingleMode 40G
ER4 Duplex LC QSFP+ CWDM4 Transceiver (40km,
1310nm) – QFP-3140
SingleMode 40G ZR4 Duplex LC QSFP+ Lan-WDM Transceiver (80km, 1310nm) – QFP-3180
● 40 Gbps高速傳輸
● 提供MPO-12
/Duplex LC光纖接頭
● 支援Hot-swappable
● 兼容SFP
Multi-Sourcing Agreement (MSA)多源協議
● 支援Digital
Diagnostic Monitoring (DDM) 數字診斷監控
● 0°C to 70°C
Operating Temperature

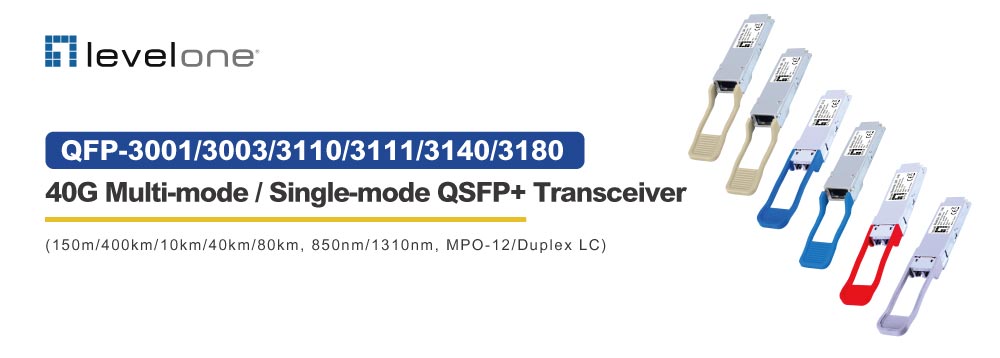

德國網絡名牌LevelOne最新推出一共6款40G
QSFP+ Transceiver – QFP-3001/3003/3110/3111/3140/3180。QFP-3001及QFP-3003均為40G
850nm Multi-mode QSFP+
Transceiver，配備MPO-12光纖接頭，前者訊號傳輸至150m，而後者則達400m；QFP-3110和QFP-3111為40G
1310nm Single-mode QSFP+
Transceiver，均能傳輸訊號高達10km，前者採用Duplex
LC 接頭及CWDM4模組，後者則提供MPO-12光纖接頭及PSM4模組；QFP-3140為40G
1310nm Single-mode QSFP+
Transceiver，配備Duplex
LC 接頭及CWDM4模組，訊號傳輸高達40km；QFP-3180同為配備Duplex
LC 接頭的40G
1310nm Single-mode QSFP+
Transceiver，備有Lan-WDM模組，訊號傳輸高達80km。
QFP-3001/3003/3110/3111/3140/3180均支援Hot-Swappable功能，運作溫度又能達至0°C
~ 70°C，提高運作的可靠度。另外亦支援Digital
Diagnostic Monitoring (DDM) 數字診斷監控，用戶能夠監控Transceiver的實時參數，包括工作溫度、工作電壓、工作電流、發射和接收功率等，並兼容Multi-Source
Agreement (MSA) 多源協議，用戶可以跟據所需的傳輸距離，選擇適合的QSFP+ Transceiver
module。
QFP-3001 MultiMode
40G SR4 MPO-12 QSFP+ Transceiver (150m, 850nm)
QFP-3003 MultiMode
40G CSR4 MPO-12 QSFP+ Transceiver (400m, 850nm)
QFP-3110 SingleMode
40G LR4 Duplex LC QSFP+ CWDM4 Transceiver (10km, 1310nm)
QFP-3111 SingleMode
40G PLR4 MPO-12 QSFP+ PSM4 Transceiver (10km, 1310nm)
QFP-3140 SingleMode
40G ER4 Duplex LC QSFP+ CWDM4 Transceiver (40km, 1310nm)
QFP-3180 SingleMode
40G ZR4 Duplex LC QSFP+ Lan-WDM Transceiver (80km, 1310nm)
