Project Description

Redundant Ring Technology- 支援高速Failover (<20ms)

-40°C to 75°C大範圍運作溫度

IP30防塵標準

支援Dual Power輸入

Full Power PoE+ 30W@240W PoE Budget

Surge Protection

無風扇設計

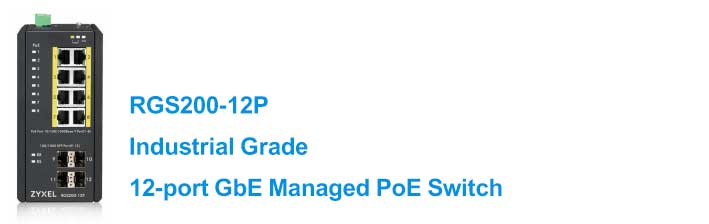

Zyxel全新的工業級PoE Switch--RGS200-12P正式推出，專為嚴苛的工作環境設計，適合廠房、工地等較為惡劣的安裝環境；加入Redundant Ring Technology支援少於20ms的高速network failover功能，同時具備多項Layer 2 管理功能，web界面操作簡易，12個PoE+ full power供電埠，4個SFP uplink，Dual power輸入，令RGS200-12P成為工程用交換機的新星。



極端溫度及環境操作設計  支援Surge Protection

RGS200-12P以無風扇IP30的金屬機身為設計，能抵禦極端溫度(-40°C to 75°C)、塵粒。可以DIN rail或牆身安裝。支援DC及Ethernet port的Surge protection，減少網絡面對Electrostatic Discharge所帶來的損失。

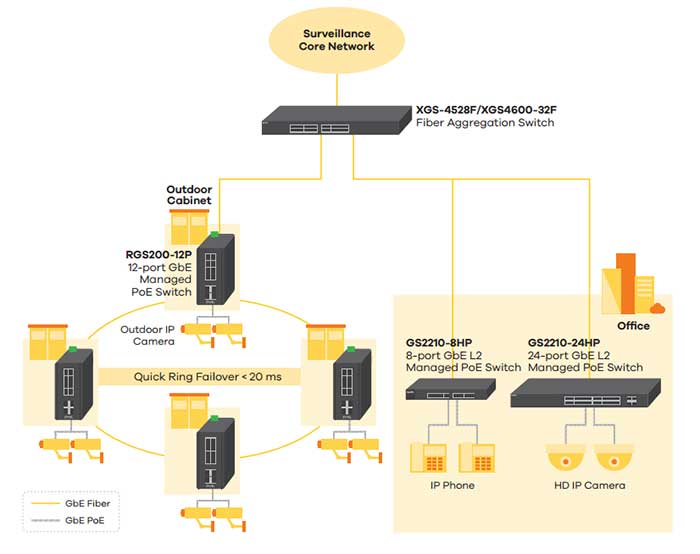

Redundant Ring Technology Quick Failover

Ring的網絡架構應用於高備援要求網絡環境，而Zyxel為滿足市場需要，特別於RGS200-12P加入Redundant Ring Technology，處於ring的架構下提供少於20ms的network failover時間，快速回復網絡狀態。同時提供Dual DC power inputs，如其中一個電源出現問題，都有後備的處理供電，令系統運作更穩定。

8-port GE PoE + 4-port SFP 30W @240W PoE Budget

RGS200-12P具備 12個端口，包括 8個 GbE PoE ports及 4個  SFP ports，提供 24Gbps switch capacity。每個 GbE PoE ports支援 30W PoE+供電能力，電源供應高達 240W total PoE Budget，足以應付IP Phone、AC Access Point及IP Camera的供電需要。



RGS200-12P系列其他功能:



Traffic Control

• VLAN number (static: 1024)

• 802.1Q VLAN tagging

• GVRP

• IEEE 802.3ad LACP

• Static link aggregation (Group: 6, member: 8)

• Port isolation

• Storm control (Unicast, broadcast, and unknown flooded traffic)



Resilience and Availability

• Fast failover ring protection with single and multiple rings, ring coupling, dual homing, and chain

• IEEE 802.1D STP, IEEE 802.1w RSTP, IEEE 802.1s MSTP

• Static trunk or dynamic via LACP (Link Aggregation Control Protocol)



Layer 2 Multicast

• L2 multicast group(256)

• IGMP snooping (v1, v2 and v3)

• IGMP snooping and querying

• MLD snooping and proxy



Security

• IP and MAC-based access control(128)

• ACL (support IPv4/IPv6)(256)

• 802.1X (port-base)

• Guest VLAN

• Port security

• MAC address limit

• Layer 2 MAC filtering

• Static MAC forwarding

• Multiple RADIUS servers

• RADIUS/TACACS+ authentication & authorization

• SSL

• IP source guard

• ARP inspection



QoS

• 802.1p priority queues per port

• 802.1p queuing method (scheduler)

• Rate limiting, port based

• 802.3x flow control



Class of Service (CoS)

• Voice VLAN (OUI, LLDP)

• 802.1p Class of Service (SPQ, WRR)

• Port-based CoS

• IP TOS precedence

• DSCP

• 8 queue per port



Manageability

• SNMP v1, v2c, v3

• ICMP echo reply

• Syslog



Industrial Case/Installation

• Slim IP30 metal case protection

• DIN rail and wall mount design

• Dual power design

• Supports lightning surge protection:

- Ethernet port: 2KV

- Power input: 2KV

• Supports ESD protection (Air/Contact): 8KV/6KV

• Supports EFT protection: 4KV

• -40°C to 75°C operating temperature



Model

RGS200-12P

　

12-port GbE L2 Managed PoE Rugged Switch
w/ SFP Uplink

PoE GbE ports

8

GbE / SFP shared ports

4

Switch fabric speed (GbE)

24

Forwarding rate (Mpps)

17.86

Packet buffer (byte)

512K

MAC address table

8K

Jumbo frame

9K

Total PoE power budget

240W

Operate Temperature

-40°C to 75°C

operate Humidity

5% to 95%

MTBF (hr)

568430
