Project Description

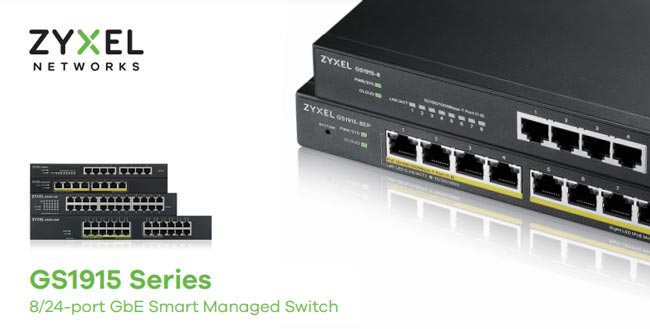

ZyXEL全新NebulaFlex
Smart Managed Switch –GS1915
系列

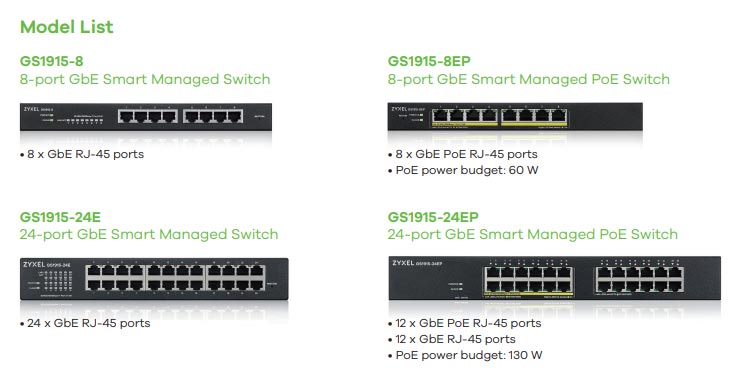

8-port
series
GS1915-8 –
8*GbE ports
GS-1915-8EP
– 8*GbE PoE ports. 30W PoE+, Max 60W PoE Budget
24-port
series
GS1915-24E
– 24*GbE ports
GS1915-24EP
– 12*GbE PoE ports + 12*GbE ports. 30W PoE+, Max 130W PoE Budget.
Web Managed +
Nebula Cloud Managed
L2 multicast,IGMP
snooping
STP / RSTP
LACP
802.1Q VLAN
802.1p CoS
PoE Schedule
ZyXEL推出全新入門級NebulaFlex Smart Managed Switch Series
–
GS1915 series,令雲端網絡管理的門檻進一步降低,更適合預算不高及功能要求不至於太複雜的SOHO,
Small Business及chain
stores使用。系列提供8
/ 24-port, PoE / non-PoE的型號選擇,不論連接
PC / AP / Router / IP Camera / PoS系統都得心應手。加上Smart L2的管理功能,可為用家帶來連線管制
(VLAN)、保安(L2
MAC filtering, Port isolation, DHCP Snooping)、Layer
2 Multicast (IGMP snooping)、管理 (SNMP, Syslog)等功能,亦為進階應用帶來更大彈性。
充分的交換能力
GS1915-8 series / GS1915-24 series
具備
8 / 24個GbE ports,PoE系列(GS1915-8EP
/ GS1915-24EP)包括
8 / 12個 GbE PoE ports,提供
16 /
48Gbps switch capacity, 8k Mac Address,足以應付SOHO/小型機構的連接應用。
NebulaFlex
Hybrid設計
Web管理
x
Cloud管理
NebulaFlex混合型Switch可以使用傳統web方式管理,亦可以使用雲端Cloud方式管理。系統可以靈活滿足客戶不同網絡部署的需求,輕鬆轉換兩種管理方法;加上設有免費雲管理,可輕鬆享受雲端管理功能,不需要額外的硬件或軟件無線網絡控制器。客戶可以藉由雲端部署的彈性,體驗最新的功能,保護客戶對無線網絡的投資。
轉換兩種管理方法也是十分容易,客戶在組裝GS1915系列後,就可以在界面選擇管理模式。選擇傳統方式的優勢在於其單機管理,針對管理數量不多的網絡;而選擇雲端方式管理的優勢在於它有中央化的平台以管理所有網絡,為最有效的方式管理多點或是多個設備。
針對多播影音資料傳輸網路
GS1915系列提供L2
multicast、IGMP snooping功能,確保多播的影音串流擁有優化的傳輸效果。
連線管理及防護功能
網絡中斷是中小企業面對的重大問題,GS1915系列交換器保護使用者因內部錯誤或外部攻擊導致的網絡中斷,提供更穩定的連線服務。支援Loop
Guard,避免內部廣播風暴造成網絡中斷;CPU保護令設備能夠持續運作,從而設定rate limit、暫時關閉受攻擊的port,直到威脅解除。此外,雙影像檔(dual images)和雙設定檔(dual
configuration files)提高系統的可靠性與備援能力。
GS1915系列集流量控制、QoS、LACP、spanning tree線路備援、RADIUS、SNMP等
Layer 2管理及交換功能,經Web
GUI方式管理;加上運用L2
MAC filtering、port isolation、VLAN等方式,達到連線管理及隔離問題連線等目的。更支援IPv6與最新網絡接軌,豐富的管理功能專為企業而設。
GS1915-8EP
/ 24EP支援802.3at
PoE+
GS1915-EP系列採用802.3at
PoE standard,GS1915-8EP於8個Gigabit ports上提供30W
PoE+供電能力,供應達60W
total PoE Budget;GS1915-24EP於其中12個Gigabit ports上提供30W
PoE+供電能力,供應達130W
total PoE Budget。足以應付AP、IP Camera、VoIP
Phone的供電需要。提供PoE
Schedule功能,為PoE
ports作時間開關管理。受惠於NebulaFlex管理,用戶可以隨時通過手機app或電腦管理監看PoE連線狀況。
GS1915系列其他功能:
高可用性
•
STP / RSTP
•
IEEE 802.3ad LACP
•
Loop guard
•
Dual configuration files
•
Dual images
流量傳輸管理
•
802.1Q Static VLANs
•
Port-based VLAN
•
MAC-based VLAN
•
Voice VLAN*
•
VLAN trunking
Security and Authentication
•
Layer 2 MAC filtering
•
Static MAC forwarding
•
SSH v2
•
SSL
•
Port isolation
•
Port security
•
MAC freeze
•
CPU protection
•
SHA2 HTTPS certification
•
Login authentication by RADIUS
•
RADIUS accounting
•
Authorization on RADIUS
•
Multiple RADIUS servers
•
DHCP Snooping
QoS功能
•
802.1p queuing methods: SPQ, WRR, WFQ
•
Storm control: broadcast, unknown L2MC, unknown unicast (DLF)
•
Rate limiting per port
•
802.3x flow control
•
802.1p Class of Service (SPQ, WFQ, SPQ/WFQ combination capable)
•
DiffServ (DSCP)
Layer 2 Multicast
•
L2 Multicast
•
Static L2 Multicast Forwarding
•
IGMP snooping (v1, v2, v3)
管理功能
•
SNMP v1, v2c, v3
•
SNMP trap group
•
RMON (1, 2, 3, 9)
•
ICMP echo/echo reply
•
Syslog
•
Display port utilization
•
IEEE 802.1AB LLDP
•
IEEE 802.1AB LLDP-MED
•
Custom default
•
Support NebulaFlex for Cloud Management
IPv6 Management
•
IPv6 over Ethernet (RFC 2464)
•
IPv6 addressing architecture (RFC 4291)
•
Dual stack (RFC 4213)
•
ICMPv6 (RFC 4884)
•
Path MTU (RFC 1981)
•
Minimum path MTU size of 1280 (RFC 5095)
•
Encapsulation for maximum MTU of 1500
•
Neighbor discovery (RFC 4861)
Device Management
•
Standalone management by Web interface
•
Cloud management by Nebula Control Center
•
Management through Web, SNMP
•
Firmware upgrade by FTP/Web
•
Configuration saving and retrieving
•
DHCP relay per VLAN
•
DHCP client
•
Daylight saving
•
NTP Server (IPv4/IPv6)
•
Port mirroring
•
Scheduled PoE
•
PoE default consumption mode
Model |
GS1915-8 |
GS1915-8EP |
GS1915-24-E |
GS1915-24EP |
|
8-port GbE Smart Managed Switch |
8-portE Gb Smart Managed PoE Switch |
24-port GbE Smart Managed Switch |
24-port GbE Smart Managed PoE Switch |
NebulaFlex
Management |
Base |
Base |
Base |
Base |
Total ports |
8 |
24 |
||
GbE ports |
8 |
- |
24 |
12 |
GbE PoE ports (PoE+) |
- |
8 |
- |
12 |
Total PoE Budget |
- |
60W |
- |
130W |
Switch fabric speed
(GbE) |
16 |
48 |
||
MAC address table |
8K |
